1. 目录

  • Spring中Bean的生命周期
  • 注册BeanPostProcessor
    • BeanFactory.getBean()（注册Bean）
      • createBean()
        • resolveBeforeInstantiation
          • InstantiationAwareBeanPostProcessor.postProcessBeforeInstantiation()
          • BeanPostProcessor.postProcessAfterInitialization()
            • 这里调用postProcessAfterInitialization 有啥用？？
        • doCreateBean() 创建bean
          • createBeanInstance 创建实例
          • populateBean 设置Bean属性
            • InstantiationAwareBeanPostProcessor.postProcessAfterInstantiation
          • initializeBean 初始化方法
            • 处理BeanNameAware、BeanClassLoaderAware、BeanFactoryAware
            • applyBeanPostProcessorsBeforeInitialization
            • invokeInitMethods
            • applyBeanPostProcessorsAfterInitialization
      • getSingleton(String beanName, ObjectFactory<?> singletonFactory)
    • registerBeanPostProcessors
  • ApplicationContextAware 在哪被调用？
  • 多个BeanPostProcessor，先注册的会不会对后面注册的BeanPostProcessor起作用？
  • InstantiationAwareBeanPostProcessor应用——AOP
    • 创建AOP
      • @EnableAspectJAutoProxy
      • AnnotationAwareAspectJAutoProxyCreator
        • InstantiationAwareBeanPostProcessor.postProcessBeforeInstantiation
        • 创建目标对象
        • InstantiationAwareBeanPostProcessor.postProcessAfterInitialization(initializeBean()中的)
          • wrapIfNecessary()包装Bean
          • 什么时候注册的增强器？？
          • AspectJPointcutAdvisor 是干什么的？？
    • 执行AOP目标方法
      • 获取拦截器链
      • 递归调用拦截器
  • 总结

2. 流程图

代码流程可参见 spirng 流程图

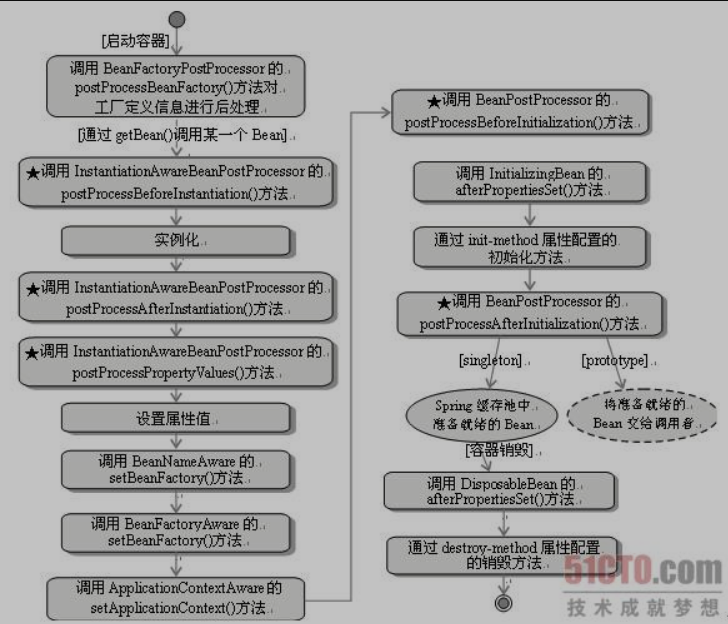

3. spring中bean生命周期

Spring作为一个优秀的框架，拥有良好的可扩展性。Spring对对象的可扩展性主要就是依靠InstantiationAwareBeanPostProcessor和BeanPostProcessor来实现的。

* InstantiationAwareBeanPostProcessor 主要是作用于实例化阶段。
* BeanPostProcessor 主要作用与 初始化阶段。

1
2
3
4
5
public AnnotationConfigApplicationContext(Class<?>... annotatedClasses) {
   this();
   register(annotatedClasses);
   refresh();
}

applicationContext构造方法中调用refresh()方法

refresh() 方法中这里主要关心两个方法

  • registerBeanPostProcessors(beanFactory); 注册BeanPostProcessor
  • finishBeanFactoryInitialization(beanFactory); 注册余下的Singletions Bean

4. 注册BeanPostProcessor

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
//BeanPostProcessor按优先级分为PriorityOrdered，Ordered和其他的，对他们分别进行操作。
public static void registerBeanPostProcessors(
			ConfigurableListableBeanFactory beanFactory, AbstractApplicationContext applicationContext) {

        //取所有BeanPostProcessor。
		String[] postProcessorNames = beanFactory.getBeanNamesForType(BeanPostProcessor.class, true, false);

		// Register BeanPostProcessorChecker that logs an info message when
		// a bean is created during BeanPostProcessor instantiation, i.e. when
		// a bean is not eligible for getting processed by all BeanPostProcessors.
		int beanProcessorTargetCount = beanFactory.getBeanPostProcessorCount() + 1 + postProcessorNames.length;
		beanFactory.addBeanPostProcessor(new BeanPostProcessorChecker(beanFactory, beanProcessorTargetCount));

		// Separate between BeanPostProcessors that implement PriorityOrdered,
		// Ordered, and the rest.
		List<BeanPostProcessor> priorityOrderedPostProcessors = new ArrayList<BeanPostProcessor>();
		List<BeanPostProcessor> internalPostProcessors = new ArrayList<BeanPostProcessor>();
		List<String> orderedPostProcessorNames = new ArrayList<String>();
		List<String> nonOrderedPostProcessorNames = new ArrayList<String>();
		for (String ppName : postProcessorNames) {
			if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
			    //注册或创建`BeanPostProcessor`
				BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);
				priorityOrderedPostProcessors.add(pp);
				if (pp instanceof MergedBeanDefinitionPostProcessor) {
					internalPostProcessors.add(pp);
				}
			}
			else if (beanFactory.isTypeMatch(ppName, Ordered.class)) {
				orderedPostProcessorNames.add(ppName);
			}
			else {
				nonOrderedPostProcessorNames.add(ppName);
			}
		}

		// First, register the BeanPostProcessors that implement PriorityOrdered.
		sortPostProcessors(priorityOrderedPostProcessors, beanFactory);
		registerBeanPostProcessors(beanFactory, priorityOrderedPostProcessors);

		// Next, register the BeanPostProcessors that implement Ordered.
		List<BeanPostProcessor> orderedPostProcessors = new ArrayList<BeanPostProcessor>();
		for (String ppName : orderedPostProcessorNames) {
		    //注册或创建`BeanPostProcessor`
			BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);
			orderedPostProcessors.add(pp);
			if (pp instanceof MergedBeanDefinitionPostProcessor) {
				internalPostProcessors.add(pp);
			}
		}
		sortPostProcessors(orderedPostProcessors, beanFactory);
		registerBeanPostProcessors(beanFactory, orderedPostProcessors);

		// Now, register all regular BeanPostProcessors.
		List<BeanPostProcessor> nonOrderedPostProcessors = new ArrayList<BeanPostProcessor>();
		for (String ppName : nonOrderedPostProcessorNames) {
		    //注册或创建`BeanPostProcessor`
			BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);
			nonOrderedPostProcessors.add(pp);
			if (pp instanceof MergedBeanDefinitionPostProcessor) {
				internalPostProcessors.add(pp);
			}
		}
		// 注册未实现Ordered接口的BeanPostProcessor 对象
		registerBeanPostProcessors(beanFactory, nonOrderedPostProcessors);

		// Finally, re-register all internal BeanPostProcessors.
		sortPostProcessors(internalPostProcessors, beanFactory);
		registerBeanPostProcessors(beanFactory, internalPostProcessors);

		// Re-register post-processor for detecting inner beans as ApplicationListeners,
		// moving it to the end of the processor chain (for picking up proxies etc).
		beanFactory.addBeanPostProcessor(new ApplicationListenerDetector(applicationContext));
	}

BeanPostProcessor按优先级分为PriorityOrdered，Ordered和其他的，对他们分别进行操作。

  • 先beanFactory.getBean进性实例化，
  • 再使用sortPostProcessors() 进行排序，
  • 最后registerBeanPostProcessors()进行注册。

4.1 BeanFactory.getBean()（注册Bean）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
protected <T> T doGetBean(final String name, @Nullable final Class<T> requiredType,
     @Nullable final Object[] args, boolean typeCheckOnly) throws BeansException {

   final String beanName = transformedBeanName(name);
   Object bean;
   //缓存 先getSingleton()从缓存中获取Bean，如果没有则创建。
   // Eagerly check singleton cache for manually registered singletons.
   Object sharedInstance = getSingleton(beanName);
   if (sharedInstance != null && args == null) {
     bean = getObjectForBeanInstance(sharedInstance, name, beanName, null);
   }

   else {
     // Fail if we're already creating this bean instance:
     // We're assumably within a circular reference.
     //判断循环引用,抛异常
     if (isPrototypeCurrentlyInCreation(beanName)) {
        throw new BeanCurrentlyInCreationException(beanName);
     }

     // Check if bean definition exists in this factory.
     BeanFactory parentBeanFactory = getParentBeanFactory();
     // this.beanDefinitionMap.containsKey(beanName); 就是判断有没有BeanDefinition
     if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
        // Not found -> check parent.
        String nameToLookup = originalBeanName(name);
        if (parentBeanFactory instanceof AbstractBeanFactory) {
           return ((AbstractBeanFactory) parentBeanFactory).doGetBean(
                nameToLookup, requiredType, args, typeCheckOnly);
        }
        else if (args != null) {
           // Delegation to parent with explicit args.
           return (T) parentBeanFactory.getBean(nameToLookup, args);
        }
        else {
           // No args -> delegate to standard getBean method.
           return parentBeanFactory.getBean(nameToLookup, requiredType);
        }
     }

     if (!typeCheckOnly) {
        markBeanAsCreated(beanName);
     }

     try {
        final RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
        checkMergedBeanDefinition(mbd, beanName, args);

        // Guarantee initialization of beans that the current bean depends on.
        // 获取bean的依赖，实例化bean前先实例化依赖。
        String[] dependsOn = mbd.getDependsOn();
        if (dependsOn != null) {
           for (String dep : dependsOn) {
              if (isDependent(beanName, dep)) {
                throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                      "Circular depends-on relationship between '" + beanName + "' and '" + dep + "'");
              }
              registerDependentBean(dep, beanName);
              try {
                getBean(dep);
              }
              catch (NoSuchBeanDefinitionException ex) {
                throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                      "'" + beanName + "' depends on missing bean '" + dep + "'", ex);
              }
           }
        }
        //创建实例
        // Create bean instance.
        if (mbd.isSingleton()) {
           sharedInstance = getSingleton(beanName, () -> {
              try {
                return createBean(beanName, mbd, args);
              }
              catch (BeansException ex) {
                // Explicitly remove instance from singleton cache: It might have been put there
                // eagerly by the creation process, to allow for circular reference resolution.
                // Also remove any beans that received a temporary reference to the bean.
                destroySingleton(beanName);
                throw ex;
              }
           });
           bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
        }

        else if (mbd.isPrototype()) {
           // It's a prototype -> create a new instance.
           Object prototypeInstance = null;
           try {
              beforePrototypeCreation(beanName);
              prototypeInstance = createBean(beanName, mbd, args);
           }
           finally {
              afterPrototypeCreation(beanName);
           }
           bean = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
        }

        else {
           String scopeName = mbd.getScope();
           final Scope scope = this.scopes.get(scopeName);
           if (scope == null) {
              throw new IllegalStateException("No Scope registered for scope name '" + scopeName + "'");
           }
           try {
              Object scopedInstance = scope.get(beanName, () -> {
                beforePrototypeCreation(beanName);
                try {
                    // 创建bean
                   return createBean(beanName, mbd, args);
                }
                finally {
                   afterPrototypeCreation(beanName);
                }
              });
              bean = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
           }
        }
     }
   }

   // Check if required type matches the type of the actual bean instance.
   if (requiredType != null && !requiredType.isInstance(bean)) {
     try {
        T convertedBean = getTypeConverter().convertIfNecessary(bean, requiredType);
        if (convertedBean == null) {
           throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
        }
        return convertedBean;
     }
   }
   return (T) bean;
}
  • 先getSingleton()从缓存中获取Bean，如果没有则创建。
  • 创建过程先检查有无循环依赖，有则抛出异常。
  • 实例化bean前先实例化所依赖的对象。

4.1.1 createBean()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
@Override
protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
      throws BeanCreationException {
   RootBeanDefinition mbdToUse = mbd;

   // Make sure bean class is actually resolved at this point, and
   // clone the bean definition in case of a dynamically resolved Class
   // which cannot be stored in the shared merged bean definition.
   Class<?> resolvedClass = resolveBeanClass(mbd, beanName);
   if (resolvedClass != null && !mbd.hasBeanClass() && mbd.getBeanClassName() != null) {
      mbdToUse = new RootBeanDefinition(mbd);
      mbdToUse.setBeanClass(resolvedClass);
   }

   // Prepare method overrides.
   try {
      mbdToUse.prepareMethodOverrides();
   }
...

   try {
      // Give BeanPostProcessors a chance to return a proxy instead of the target bean instance.
      // 处理InstantiationAwareBeanPostProcessor
      Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
      if (bean != null) {
         return bean;
      }
   }
...

   try {
       //创建对象
      Object beanInstance = doCreateBean(beanName, mbdToUse, args);
      if (logger.isDebugEnabled()) {
         logger.debug("Finished creating instance of bean '" + beanName + "'");
      }
      return beanInstance;
   }
    ...
}

resolveBeforeInstantiation() 在doCreateBean() 之前调用，使用InstantiationAwareBeanPostProcessor，在Bean被创建之前处理。

4.1.1.1 resolveBeforeInstantiation

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
protected Object resolveBeforeInstantiation(String beanName, RootBeanDefinition mbd) {
   Object bean = null;
   if (!Boolean.FALSE.equals(mbd.beforeInstantiationResolved)) {
      // Make sure bean class is actually resolved at this point.
      if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
         Class<?> targetType = determineTargetType(beanName, mbd);
         if (targetType != null) {
            // 调用InstantiationAwareBeanPostProcessor.postProcessBeforeInstantiation()
            bean = applyBeanPostProcessorsBeforeInstantiation(targetType, beanName);
            if (bean != null) {
               bean = applyBeanPostProcessorsAfterInitialization(bean, beanName);
            }
         }
      }
      mbd.beforeInstantiationResolved = (bean != null);
   }
   return bean;
}
4.1.1.1.1 InstantiationAwareBeanPostProcessor.postProcessBeforeInstantiation()
1
2
3
4
5
6
7
8
9
10
11
12
13
protected Object applyBeanPostProcessorsBeforeInstantiation(Class<?> beanClass, String beanName) {
   for (BeanPostProcessor bp : getBeanPostProcessors()) {
      if (bp instanceof InstantiationAwareBeanPostProcessor) {
         InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
          // 执行所有InstantiationAwareBeanPostProcessor的postProcessBeforeInstantiation
         Object result = ibp.postProcessBeforeInstantiation(beanClass, beanName);
         if (result != null) {
            return result;
         }
      }
   }
   return null;
}

波哥Java Developer & Designer

个人简介。
